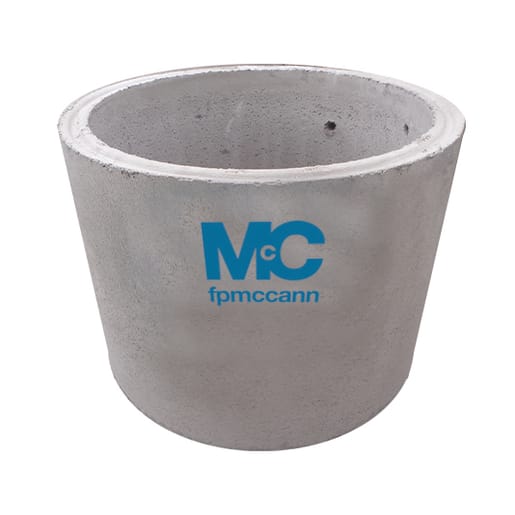

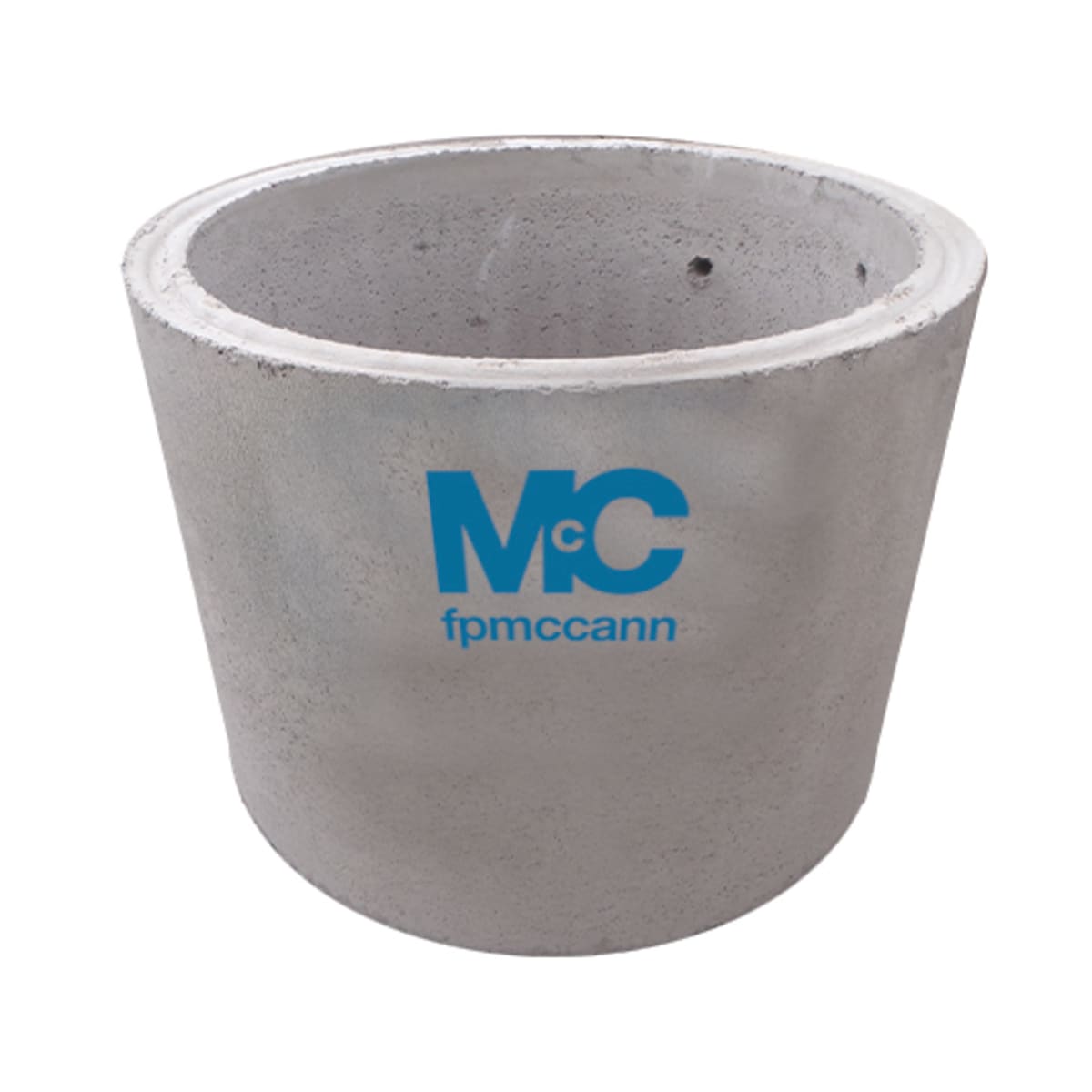

FP McCann Wide Wall Chamber Ring Double Step Irons 1200 x 1000mm
SKU: DRCHW581
FP McCann Manhole Wide Wall Chamber Ring with Double Step Irons 1200 x 1000 x 130mm (Dia x D x T) manufactued from precast concrete and has been designed with a tongue and groove dimension to accommodate the use of bituminous sealant. The sealant requirement for wide wall manholes is 12mm x 120mm x 6m. When placing the sealing strip into position during installation, the ends of the strips must be overlapped by a minimum of 30mm and cut at an angle of 60 degree. A 130mm thick wide wall chamber, provides a sealed watertight manhole system. This robust design means that the requirement for a concrete surround is eliminated.
Features & benefits
- Quick and easy installation
- Watertight structure
- Safe anchor lifting system
- No concrete backfill required, in accordance with ‘Sewers for Adoption’ 7th edition
- More environmentally friendly than a traditional system, almost 40% less carbon emitted during the concrete casting process
IDDRCHW581
Drainage > Concrete Drainage > Wide Wall Chamber Rings > FP McCann Wide Wall Chamber Ring Double Step Irons 1200 x 1000mm
https://www.frazersolutions.co.uk/p/fp-mccann-wide-wall-chamber-ring-double-step-irons-1200-x-1000mm-DRCHW581
FP McCann Manhole Wide Wall Chamber Ring with Double Step Irons 1200 x 1000 x 130mm (Dia x D x T) manufactued from precast concrete and has been designed with a tongue and groove dimension to accommodate the use of bituminous sealant. The sealant requirement for wide wall manholes is 12mm x 120mm x 6m. When placing the sealing strip into position during installation, the ends of the strips must be overlapped by a minimum of 30mm and cut at an angle of 60 degree. A 130mm thick wide wall chamber, provides a sealed watertight manhole system. This robust design means that the requirement for a concrete surround is eliminated.
Features & benefits
- Quick and easy installation
- Watertight structure
- Safe anchor lifting system
- No concrete backfill required, in accordance with ‘Sewers for Adoption’ 7th edition
- More environmentally friendly than a traditional system, almost 40% less carbon emitted during the concrete casting process
Specifications
| Product Name | FP McCann Wide Wall Chamber Ring Double Step Irons 1200 x 1000mm |
| Brand | FP McCann |
| Product Type | Manhole Chamber Rings |
| Manufacturer Name | FP McCann |
| Manufacturer Part Number | DRCHW581 |
| Compliance Approvals | CE Marked |
| Materials | Precast Concrete |
| Commercial Or Domestic Use | Commercial |
| Range | Wide Wall |
| Colour | Grey |
| Application | External |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Recyclable | Yes |
| Diameter | 200 mm |
| Thickness | 130 mm |
| Moisture Resistant | Yes |
