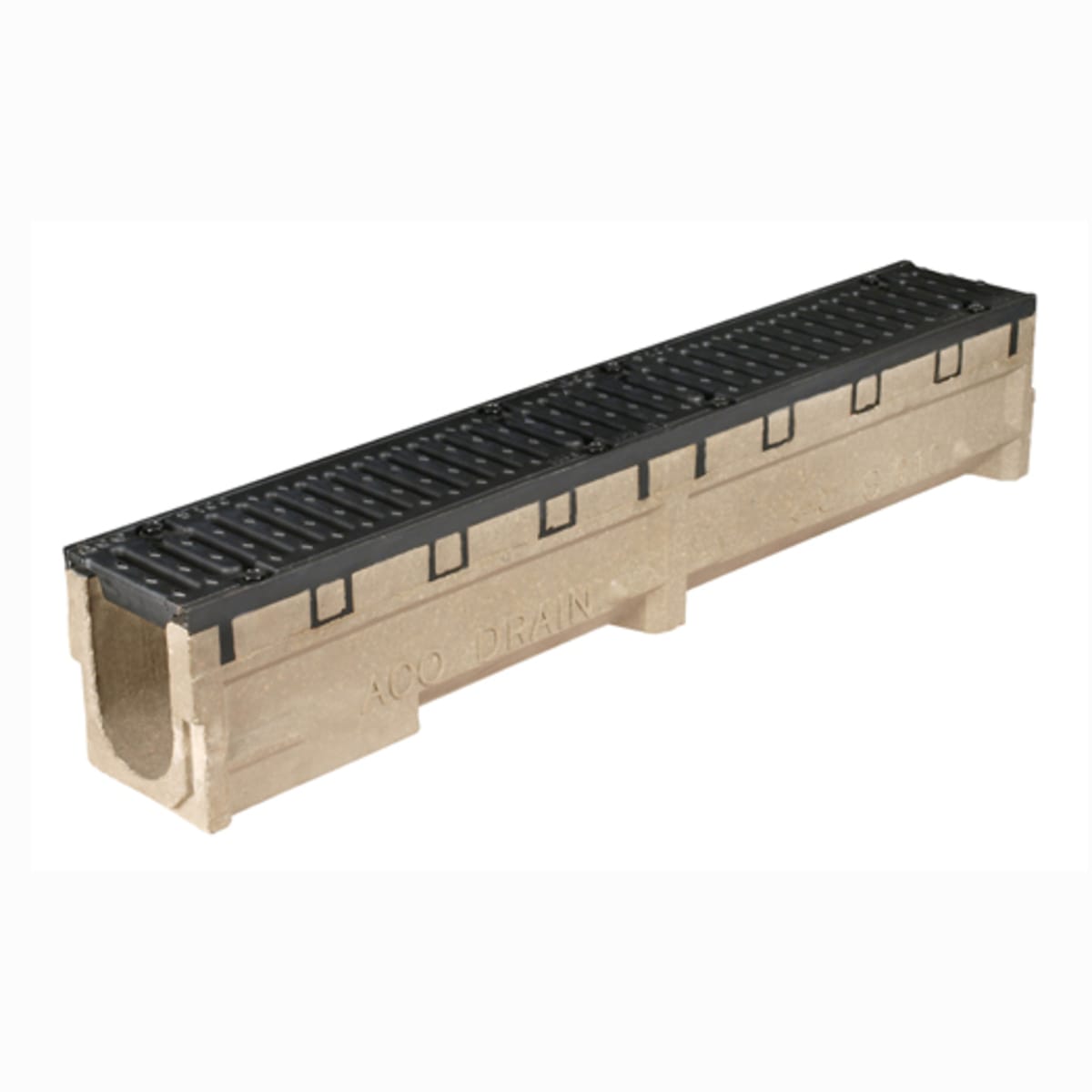

ACO S100 Level Channel S010 Cast Iron Rails 1m x 155mm
SKU: DRACO613
The ACO S100 Level Channel S010 with Cast Iron Edge Rails 1000 x 155 x 191mm (L x W x D), is a traditional channel and grating drainage system for efficient removal of surface water. Manufactured from Vienite, a high strength recycled polymer concrete It is a tough channel drainage system with excellent chemical resistance. Suitable for applications up to and including BS EN 1433:2002 load class F 900.
Features & benefits
- Fully certified to BS EN 1433: 2002 Load Class F 900
- Integral cast iron edge rails provide maximum strength and protection for channel body
- Strong and lightweight design, improves stability and anchors product into concrete surround.
- Include a vertical knockout for connection to Ø110mm
- Designed for removal of surface water in heavy-duty applications
IDDRACO613
Drainage > Water Management > Heavy-Duty Linear Drainage > ACO S100 Level Channel S010 Cast Iron Rails 1m x 155mm
https://www.frazersolutions.co.uk/p/aco-depth-channel-1000-x-155mm-black-DRACO613
The ACO S100 Level Channel S010 with Cast Iron Edge Rails 1000 x 155 x 191mm (L x W x D), is a traditional channel and grating drainage system for efficient removal of surface water. Manufactured from Vienite, a high strength recycled polymer concrete It is a tough channel drainage system with excellent chemical resistance. Suitable for applications up to and including BS EN 1433:2002 load class F 900.
Features & benefits
- Fully certified to BS EN 1433: 2002 Load Class F 900
- Integral cast iron edge rails provide maximum strength and protection for channel body
- Strong and lightweight design, improves stability and anchors product into concrete surround.
- Include a vertical knockout for connection to Ø110mm
- Designed for removal of surface water in heavy-duty applications
Specifications
| Product Name | ACO S100 Level Channel S010 Cast Iron Rails 1m x 155mm |
| Brand | S100 |
| Manufacturer Name | ACO |
| Manufacturer Part Number | 403 |
| EAN | 5030810004030 |
| Compliance Approvals | CE marked and fully certified to Load Class F 900 BS EN 1433: 2002 |
| Materials | Vienite |
| Commercial Or Domestic Use | Commercial |
| Range | Level Channels |
| Model Number | 403 |
| Colour | Black |
| Application | Heavy-Duty |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Recyclable | Yes |
| Product Width | 155 mm |
| Product Weight | 25.3 kg |
| Product Length | 1000 mm |
| Product Depth | 191 mm |
| Moisture Resistant | Yes |
