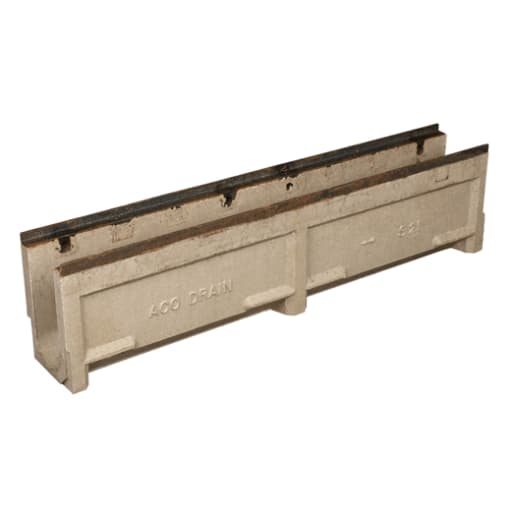

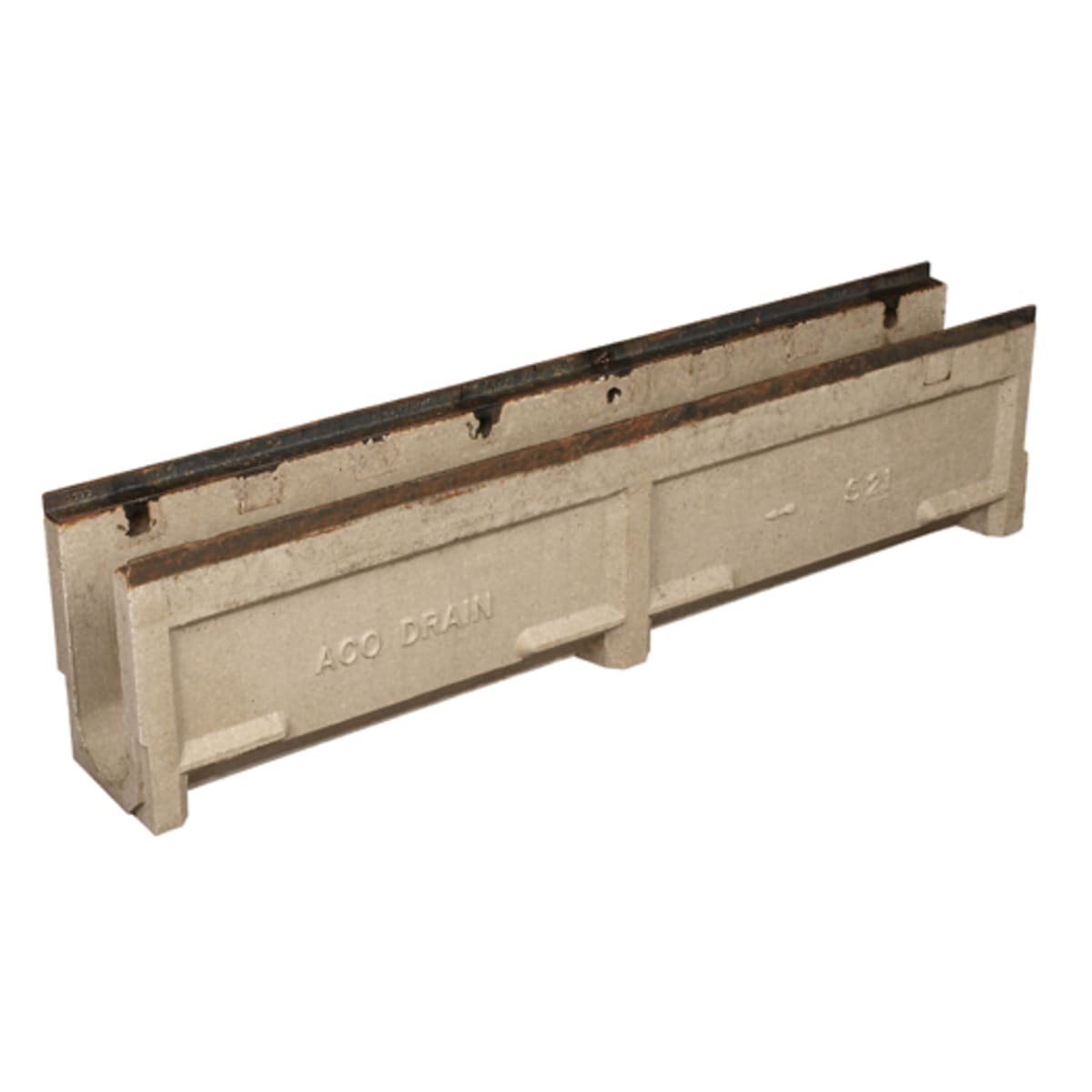

ACO S100 Level Channel S05 1m x 155 x 161mm
SKU: DRACO611
The ACO S100 Level Channel S05 1000 x 155 x 161mm (L x W x D) is manufactured from Vienite®, a polymeric based recycled material. They have 100mm internal width with cast iron edge rail. The channel has a choice of lockable ductile iron gratings.
Features & benefits
- Polymer concrete channel - accepts gratings to F900
- Polymer Concrete with cast iron rails
- Accepts bolted 500 gratings to F900 rating
- Forms part of the S100 System
- Used with channels supplied with a preformed Ø110mm round knock-out for vertical outlet
IDDRACO611
Drainage > Water Management > Heavy-Duty Linear Drainage > ACO S100 Level Channel S05 1m x 155 x 161mm
https://www.frazersolutions.co.uk/p/aco-s100-level-channel-s05-1000-x-155-x-161mm-DRACO611
The ACO S100 Level Channel S05 1000 x 155 x 161mm (L x W x D) is manufactured from Vienite®, a polymeric based recycled material. They have 100mm internal width with cast iron edge rail. The channel has a choice of lockable ductile iron gratings.
Features & benefits
- Polymer concrete channel - accepts gratings to F900
- Polymer Concrete with cast iron rails
- Accepts bolted 500 gratings to F900 rating
- Forms part of the S100 System
- Used with channels supplied with a preformed Ø110mm round knock-out for vertical outlet
Specifications
| Product Name | ACO S100 Level Channel S05 1m x 155 x 161mm |
| Brand | S100 |
| Manufacturer Name | ACO |
| Manufacturer Part Number | 274 |
| Compliance Approvals | CE marked and fully certified to Load Class F 900 BS EN 1433: 2002 |
| Materials | Vienite |
| Commercial Or Domestic Use | Commercial |
| Range | Level Channels |
| Model Number | 274 |
| Colour | Buff |
| Application | Heavy-Duty |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Recyclable | Yes |
| Product Width | 155 mm |
| Product Weight | 21.9 kg |
| Product Length | 1000 mm |
| Product Depth | 161 mm |
| Moisture Resistant | Yes |
